RJ31X SURFACE JACK + 2FT LINE CORD MOD-SPADE

FEATURES & BENEFITS

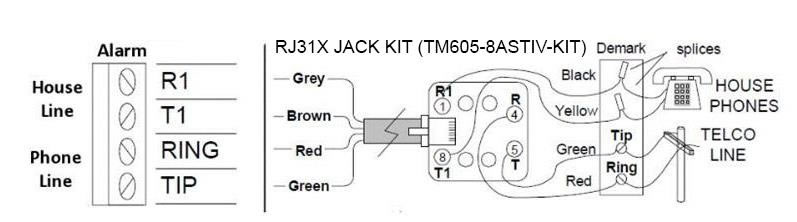

The TM605-8ASTIV RJ31X jack is used to allow your hardwired alarm system to take over control of an existing shared telephone line when it needs to dial out, disconnecting you if you are on the phone or if the phone was left off hook.  Your telephone carrier requires an RJ31X jack to be connected when using a POTS line.  If they are called out to troubleshoot a line issue and they don’t see an RJ31X jack to disconnect the alarm from the telephone line they will generally cut the alarm telephone connection and have you reconnect (or call your local security dealer) yourself.

The MLR8-02MSSV Cord is also ideal for connecting alarm panels to cellular communicators such as the Telguard TG-1 series when no RJ31X was originally installed with your system.  Makes cellular connection much easier!

The TM605-8ASTIV RJ31X jack is used to allow your hardwired alarm system to take over control of an existing shared telephone line when it needs to dial out, disconnecting you if you are on the phone or if the phone was left off hook.  Your telephone carrier requires an RJ31X jack to be connected when using a POTS line.  If they are called out to troubleshoot a line issue and they don’t see an RJ31X jack to disconnect the alarm from the telephone line they will generally cut the alarm telephone connection and have you reconnect (or call your local security dealer) yourself.

The MLR8-02MSSV Cord is also ideal for connecting alarm panels to cellular communicators such as the Telguard TG-1 series

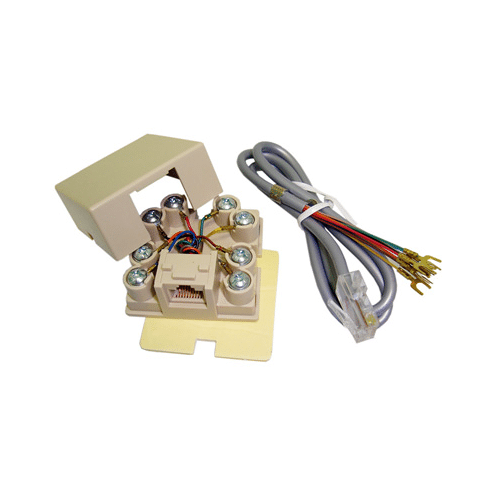

The TSOC RJ31X type alarm jacks are a unique
two-piece design equipped with a single 8P8C
screw terminal connector with shorting bars
and a snap-on cover. This jack includes a double
sided adhesive pad for versatile mounting options.
• Category 3 Rated
• Binding Post Screw Terminals
• Shorting Bars

APPLICATIONS
The TSOC RJ31X type alarm jacks are used by
Electrical and Communication cabling contractors in
new and existing Commercial and Residential building
construction.
• IP Networks
• Data Networks
• Security Networks
• Home Networks
TM605-8ASTIV
RJ31X TYPE ALARM JACK
Standard Colour:
Ivory
Unit of Measure:
EA
Inner Pack/Outer Pack:
100/400
PS235
